#130 Bunsen Burner - "Shorty" Heat Intensifying Head - Propane - Carlisle

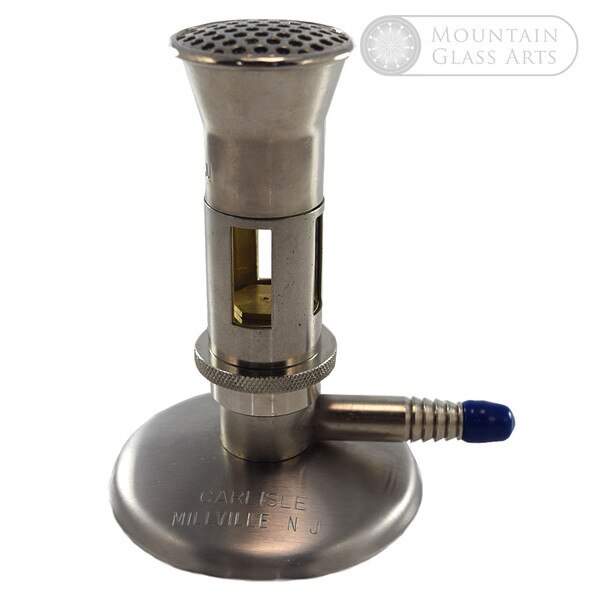

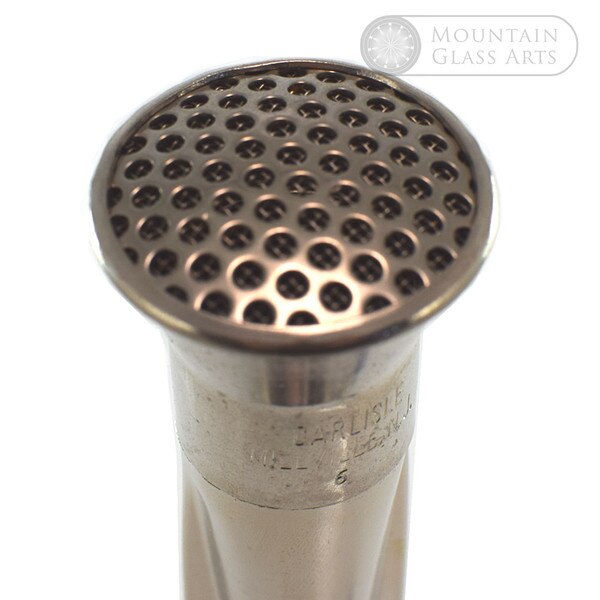

The No. 130 "Shorty" Bunsen Burner is the largest of the single head Bunsen Burners that we offer. The No. 130 comes equipped with a heat intensifying head. This head, which is made up of perforated metal, allows for a very stable and broad flame. The No. 130 Bunsen Burner is constructed with an air shutter at the bottom of the main mixing tube. The air shutter can be opened or closed to control the amount of inspirated air necessary for your application.

Barrel Height: 4.75 - 5.25"
Width of Base: 3.5"
Approximately 10,000 BTU.

Carlisle Bunsen Burners are manufactured from brass and are nickel plated. The base is manufactured out of steel. The Bunsen Burner Series is offered with several different types of burners. All Carlisle Bunsen Burners come with an integral hose adapter that fits from 1/4" to 3/8" ID hosing.
