Lathe - Table Model - 85mm Bore - 36" Chuck to Chuck - 120 Volt

- Bore - 85 mm
- Chuck to chuck length - 36"
- Swing - 9.5"
- Bed length - 49"
- Teeth projection from chuck - 1.5"

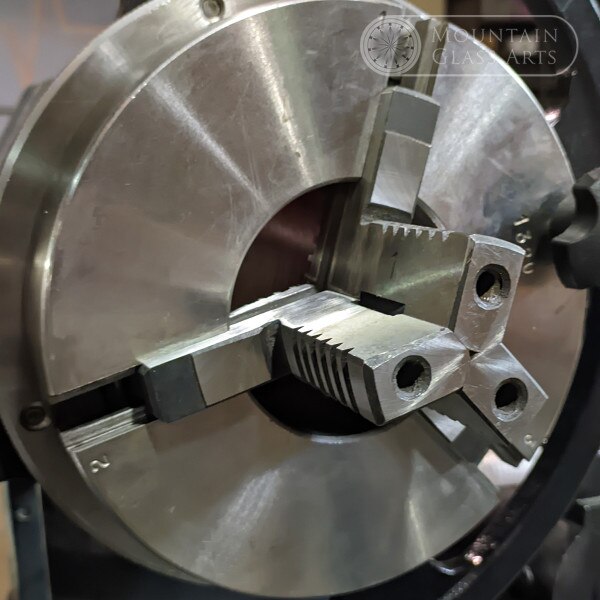

- Chuck style - scroll chucks
- Weight - 950 lbs.
- Includes an extra set of teeth for the chucks
- 120v wiring with USA 5-15 NEMA plug

$500 Flat Rate, Door Step Delivery within Continental USA

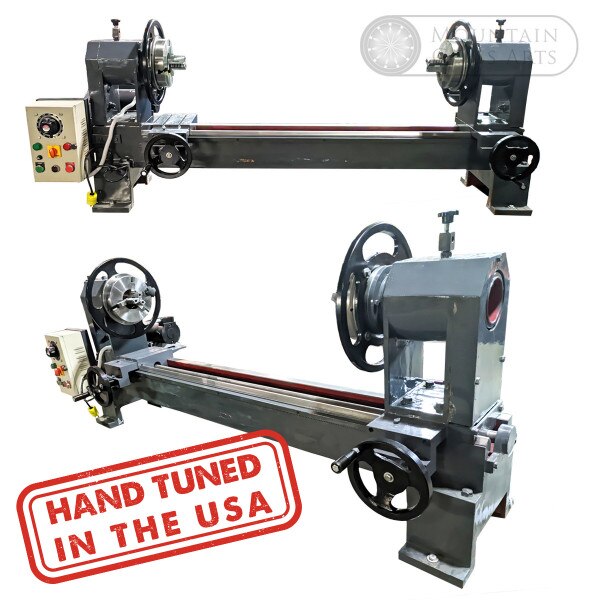

The AccuGrind Glass Blowing Lathe is a solid workhorse for the price. It is a lathe where price meets reliable functionality. Each machine is hand tuned and inspected by an expert machinist before leaving our facility to ensure full function and significantly smoother chuck action.

Each unit is hand tuned by professional machinists with over 30 years of experience. Unlike other Indian lathes on the market, the AccuGrind lathe is adjusted and tuned to operate much smoother.

The AccuGrind Lathe is designed and priced to be an introductory lathe. It is not made with the same precision as one of the many popular lathe brands such as Litton, Heathway, Bethlehem, American Lathes, Red Star, Vertigo or any other high precision machine. It is a fraction of the price of one of those lathes though and can easily pay for itself with the right operator.

Please note: An engine hoist, walkie stalker, or construction lift will be needed to move this machine. It is very heavy and not able to be lifted by hand or group of people.

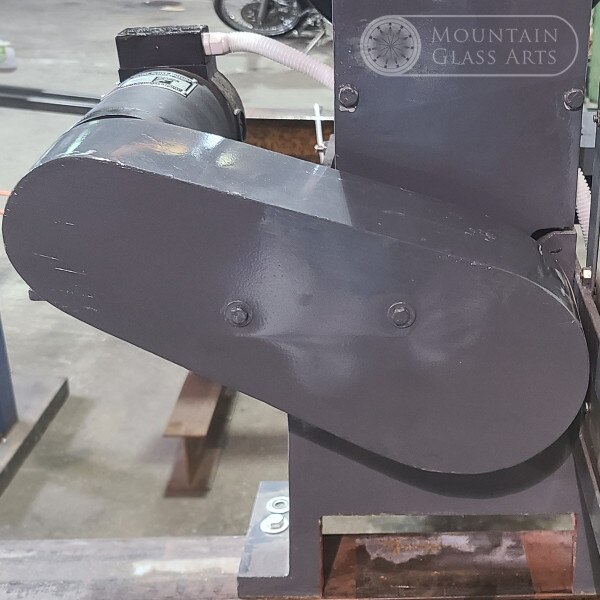

In the process of tuning the lathes some paint is broken to access the chains in the headstock and tailstock. Due to the thick coat of paint chipping is inevitable. This saves you the trouble of having to break loose the chain cover and bolts holding it, but does result in some paint loss.

Detailed Measurements

•Complete machine is 85” long x 15” wide. This includes the motor, belt, controller etc.
•Feet placement - Total length from foot end to foot end is 73". This includes the length of the feet.
•Feet are 6" long and approximately 3" wide.

Table - *Disclaimer* We have not personally tested the table(s) linked below. It has been recommended by multiple owners of these exact lathes.
The key detail of any table you choose is the weight capacity. If the table cannot stay straight and level, it will result in misfunction of the lathe and show in your glass. Uline offers multiple table options linked below.

Husky Workbench - 96" x 24 - 3,000 lb capacity (single piece & cheap)
Steel Table - 96" x 36" - 2,000 lb capacity (cheaper)
Welded Steel Workbench - 3,000 lb capacity (stronger and single piece construction)
