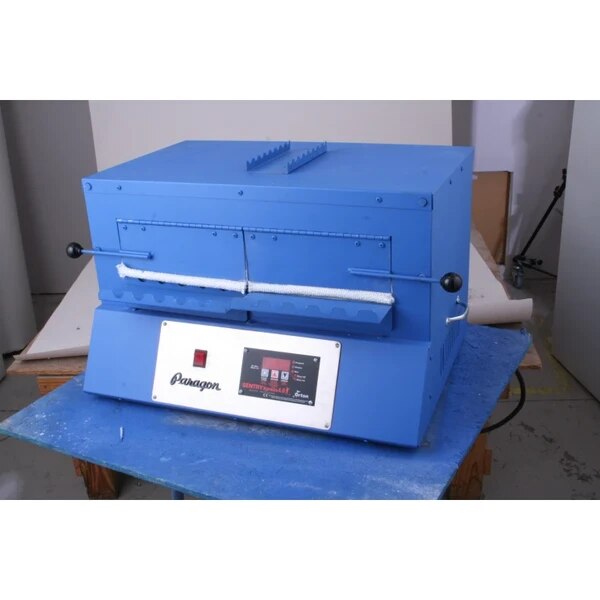

  • Paragon BlueBird XL Digital Kiln 120 volt - Width: 20.0" - Height: 4.5" - Depth: 9.0"

Paragon BlueBird XL Digital Kiln 120 volt - Width: 20.0" - Height: 4.5" - Depth: 9.0"

4 Reviews
SKU: PKBLUEBIRDXL DIGI
$1,274.02
$1,415.58 Retail
$141.56 Savings

Details

The Paragon BlueBird XL has a new and improved ceramic fiber roof and firing chamber, thicker doors with new gaskets, heavier mandrel holders, and a stainless steel control panel.

The BlueBird XL is a dream kiln for the glass bead enthusiast. This 20” wide, 8” deep kiln safely anneals glass to prevent breakage during cooling. With your own Paragon annealing kiln, you will never again worry about stress fractures in your glass.

The kiln opens doorways of opportunity in beadmaking. The 10” wide double doors give a total of 20” width for inserting bead rods. This kiln is ideal for seminar teachers. It is like having two kilns in one.

The user-friendly 3-key Sentry Xpress digital controller maintains the annealing temperature. Program it for the length of time desired. Adjust the cooling rate through the annealing range. The controller is packed with features but is user friendly.

Improved ceramic fiber firing chamber
The BlueBird XL features new sinusoidal “wavy” elements, which are embedded close to the inner surface of the high-tech, vacuum-formed ceramic fiber top. This is an improvement over our earlier embedded coiled elements, because the “wavy” elements are mounted closer to the surface. This enables the elements to radiate heat faster for longer element life. The ceramic fiber top reduces dust inside the kiln.

The BlueBird XL now features ceramic fiber walls and bottom, which replace the firebrick walls and bottom of earlier kilns. The BlueBird XL, with its space-age ceramic fiber, heats faster than ever.

Improved double doors with gaskets
Both doors are 3 1/2” x 10” and mounted in a 4 1/4” high opening. The 3/4” gap under the doors is filled by flexible, high temperature door gaskets, which help to hold in heat. The 2” thick ceramic fiber doors are twice the thickness of our original doors. The hinges are continuous across the top for extra longevity.

Bead mandrel holders
The kiln comes with one single and one double mandrel holder. The single holder supports rods or mandrels from one point; the double cradles the rods at two points. The holders are held to the kiln by magnets so you can adjust the height. They are sturdy and heavy duty for long life.

Rare-earth magnets hold doors open or closed
Rare-earth magnets hold the doors closed while the kiln is heating to annealing temperature. Phenolic knobs on the door handles stay cool to the touch. Use the switch on the front panel to turn off power to the controller when the kiln is not in use and to reboot the controller when needed.

We have added a glass rod warmer to the top of the kiln. Pre-heating the glass rods saves production time.

Heavy-duty construction
The steel base supports the kiln in two layers. The upper steel base supports and strengthens the firing chamber; the lower steel base covers the entire kiln bottom where it rests on your worktable. Electrical components are mounted to the lower base, away from the heat.

The Sentry Xpress digital controller is mounted under the kiln in an ergonomically sloped panel for easy operation. The design saves table space over kilns with a side switch box. The built-in base stays cool even during extended hold times for the long life of the electrical system. It is slotted to dissipate heat and comes with mar-proof plastic feet.

The BlueBird XL plugs into a standard household outlet. The kiln ships by convenient UPS/FedEx. It ships in a special carton with vacuum-formed padding to assure that the kiln will arrive safely.

And, of course, the BlueBird XL is made in Mesquite, Texas to exacting standards.

Features of the BlueBird XL
  • 3-key digital Sentry Xpress controller
  • 2 - 3 1/2” high doors with flexible high temperature gasket
  • Rare-earth magnets hold the doors open or closed
  • The firing chamber is 8” deep measured with doors closed; 10” deep measured with doors open
  • ceramic fiber firing chamber for rapid heating
  • 2” thick ceramic fiber doors with flexible gaskets
  • Mandrel holders attach to the kiln with magnets
  • 1500°F maximum temperature
  • Ceramic fiber roof with embedded elements
  • Mar-proof plastic feet
  • On-off safety switch

The Sentry Xpress 3-key controller is packed with features. It includes two modes: Single Speed and 8-segment Ramp-Hold. The solid state controller continually monitors the firing so you can spend your time productively without closely watching the kiln. The sealed controller touch pad keeps out dust and is easy to wipe clean.
The controller is easy to use. Read the manual and watch the instructional videos on our website. The kiln includes a Quick Start programming guide and a 16-page controller instruction manual, printed in color.
You will be amazed at the convenience of digital firing. The reliable solid-state Sentry Xpress controller continually monitors the firing so you do not need to closely watch the kiln. (Please remember, however, to check the kiln occasionally during firing and to monitor it near the expected shutoff time.) You can try out a demonstration of the controller on your computer by clicking here.
Features of the Sentry Xpress 3-key Controller on Paragon Fusion Kilns
  • Program up to 8 segments (steps) in Ramp-Hold mode.
  • Fire to a single temperature at a single speed in Single Speed mode.
  • Store up to 4 programs in Ramp-Hold mode.
  • Skip a segment in Ramp-Hold without having to stop the kiln to reprogram. (For instance, you want to skip to the annealing segment.)
  • Change the target temperature in Ramp-Hold during firing without stopping the kiln to reprogram.
  • Hold (soak) the temperature in both Single Speed and Ramp-Hold.
  • Add Hold Time during firing without having to stop the firing to reprogram.
  • Easily control both heating and cooling in Ramp-Hold.
  • Program Review lets you check the program you are about to fire.
  • Program the Temperature Alarm to sound when the kiln reaches a specific temperature. Program an alarm that will remind you to check on the kiln.
  • Temperature display throughout firing and cooling in your choice of °F or °C
  • Thermocouple Offset adjusts the thermocouple readout.
  • Set the Delay to turn on the kiln at a time that best suits your busy schedule.
  • Error Messages report mechanical problems.
  • The sealed touch pad keeps out dust and is easy to wipe clean.
  • LED Lights show whether you are in program, review, or firing mode.
  • Colorful, illustrated instruction manual. Download it from the “Additional Information” section below to review all the controller features in more detail.
  • Specifications

    Max. Temperature1500F
    815C
    Amps14
    Phase1
    Watts1700
    Nema5-15R
    Breaker Size20
    Circuit Copper Wire Size12 gauge
    TUV tested to CSA and UL Standard 499Y
    CEY
    Control Type
    Sentry Xpress 4.0 Digital 3-Key
    Voltage120
    Hertz60








    Disclaimer: The specifications above assume that the kiln will be plugged into a dedicated circuit. Local electric codes supersede our recommendations.The pricing and electrical specifications for the above products reflect their design for use in the United States. The International versions of most models will have variations in electrical specifications and price due to consumer safety requirements or electrical regulations.
    Kiln TypeFront Loading Square
    Sides4
    Understanding Chamber Measurements
    Chamber Volume0.47 CU.FT.
    13.31 litres
    Chamber Width20.00 IN
    508 mm
    Chamber Depth9.00 IN
    229 mm
    Chamber Height4.50 IN
    114 mm

    The Outer Size of the Kiln and the Shipping Size: Width = Left to Right; Depth = Front to Back; Height = Top to Bottom
    Outer Size25.50W x 19.00D x 16.00H Inches
    648W x 483D x 406H mm
    Ship Size32.00W x 24.00D x 23.00H Inches
    813W x 610D x 584H mm
    Ship Weight86.00 Lbs.
    39.01 Kg.
    Ship Method & NotationsThis Kiln Ships Via UPSThis kiln is subject to a UPS oversize box charge.


Ratings & Reviews

4 reviews

  • 4 stars
  • 0 reviews
  • 3 stars
  • 0 reviews
  • 2 stars
  • 0 reviews
  • 1 star
  • 0 reviews

fantastic work horse!

by -

I believe that the bluebird xl is one of the best sized kilns for your everyday production glass work. Nice n wide ya got plenty of room for finished work on the right side and 10 slots for prewarming blanks on the left. The controller is amazing as well with plenty of programmable segments for stricking colors or even for fusing projects. All and all I have had my bluebird xl for almost 3.5 years now (firing it almost everyday) and have only had to change the relay last year (like 30 bucks) and the roof elements just a week ago (only reason why the elements blew out was due to electrical work being done in my neighborhood and I didn't turn off and unplug my kiln when I knew there could be a surge... silly me) All and all I recommend this kiln like crazy. Much love yall! -Ian Rizk Melodium glass

work horse

by -

I love my Bluebird it is great for the active lampworker it truley is like having two kilns in one there is plenty of room for all your prep work and finished pieces no clanging and clapping your work together trying to find room the Bluebird is like a garage for your work

Quality & Reliability

by

I have had my Bluebird XL kiln for 15 years now and it's still going strong and had never given me a moment of trouble. It has a long interior where I can put tons of beads, or kiln furniture, or larger items. It has good range and the digital controls are simple to use, and the elements and interior brick are sturdy. I highly recommend this kiln to any bead or smaller iten boro artist.

Perfect fire it up!!

by

Love this kiln works perfectly has a bunch of settings for easy change in temperature and time I recommend it!
