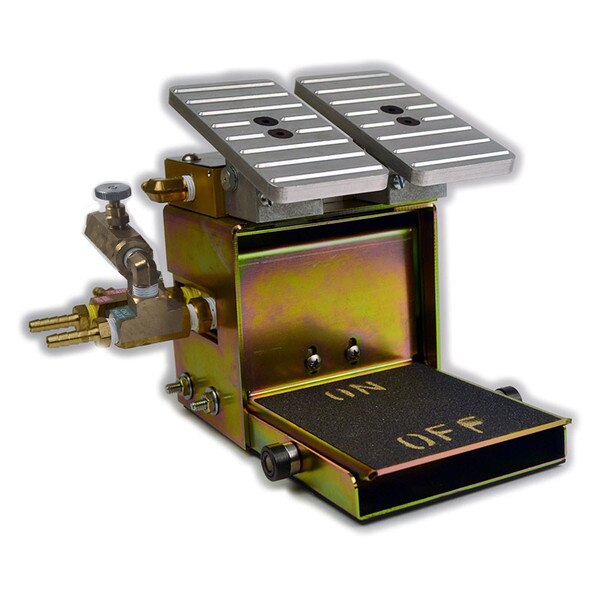

Rock-It Foot Pedal w/ Oxygen Bypass & Air Pedal - Griffin Glass Tools

(0) No Reviews yet
SKU: EQ318
Drop Ship Item - Call For Lead Time


This is the popular Rock-It foot pedal with the added Oxygen bypass feature. The function of the oxygen bypass is to allow a metered amount of oxygen to flow through the outer fire ring to achieve a more penetrating inside fire while the foot pedal is in the off position. The bypass can also be closed to allow the foot pedal to operate in its normal function.

The oxygen bypass will help keep silver based colors clear until you want them to strike and keep temperamental colors that otherwise might boil from being overheated. The amazing flame setting on a GTT torch known as the “laser Flame” can be achieved by using the oxygen bypass on the pedal. The best way to explain the oxygen bypass function is this: When the pedal is on you’ll have full oxygen flow, when the pedal is off a small amount of oxygen can flow through the outer fire ring if the oxygen bypass is OPEN on the pedal.

This unit can be run in the open position for unlimited time periods. sound, mechanical operation.

These pedals are available for two and three-stage torches that are equipped for compressed air. Introducing compressed air into the fuel
mix allows for a broader range of temperatures and chemistry. This added control makes it easier to dial in a
more even heat at lower temperatures. It can even help avoid effects such as boiling and scumming while
using hard to work colors.

The Rock-It is constructed with top quality, high volume valves. You can expect years of trouble free usage with the new long lasting valves. This unit can be run in the open position for unlimited time periods.

The Rock-It has a maintain switch. The maintain switch will keep the outer fire on until switch is depressed a second time allowing freedom of movement.

The stainless steel foot pedal body offers durability and a professionally engineered design. The low profile design ensures ease of use and supports appropriate posture. As a safety feature the gas lines are located 4" from the floor, the pedal's bottom surface. The unit acts with immediate response. Both the on and off operations of the torch are instantaneous after the switch is activated.

The Rock-It is compatible with all 2 stage and 4 prong torches including the following: Carlisle, Carlisle Plus, GTT Phantom, GTT Mirage, GTT Delta Elite, and the modified Bethlehem. All torches must have four prong inlets.

The Rock-It is warranted for 1 year. This includes all parts and function when the product is used properly according to the manufacturer's information.
