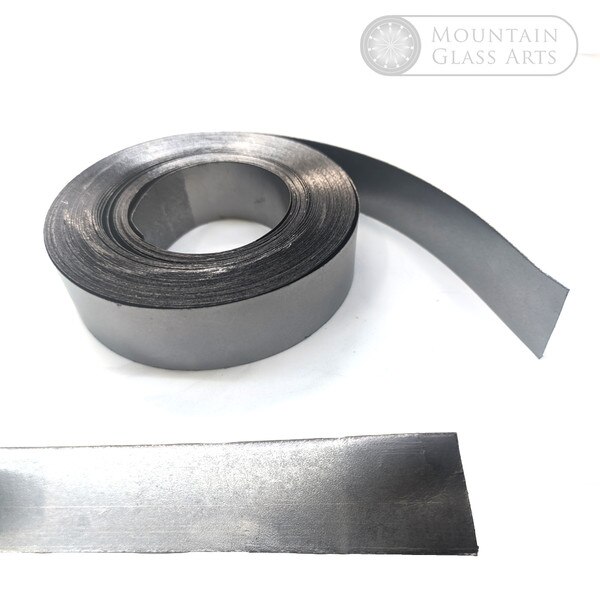

Standard (Smooth) Graphite Paper Tape - 1" W x .01" T - By the Foot

(0) No Reviews yet
SKU: GHT088
$1.76 / Feet
FeetPrice
1 – 24$1.76
25 – 49$1.26
50 +$0.90
$31.50 - Half Roll = 25 ft.
$45.00 - Whole Roll = 50 ft.

Details

Tapes are used primarily as an indicator and spacer between glass tapered joints. They endure high temperatures and will not adhere to the glass. Available with or without adhesive.

Applications:

  • Thread sealant tape or form-in-place large diameter gaskets
  • Threaded joints
  • Form-in-place gaskets
  • Large diameter flanges
Typical Properties
CharacteristicTypical Value
Temperature Use Range-400° F to 975° F (-240° C to 525° C)
Bulk Density70 lb./ft3 (1.12 g/cc) 62.4 lb./ft3 (1.00 g/cc)
Ash Content1.8%
Carbon Content98.2%
Leachable Chloride10 ppm
Sulfur Content550 ppm
Oxidation Weight Loss3%
Compressibility at 5000 psi (35 MPa) load43% for 70 lb./ft3
Recovery after 5000 psi (35 MPa) load15% for 70 lb./ft3
Tensile Strength650 psi for 70 lb./ft3
