126/20 PS -Premix - Mini-Hand Torch - Herbert Arnold

(0) No Reviews yet
SKU: TH07
$419.00

Details

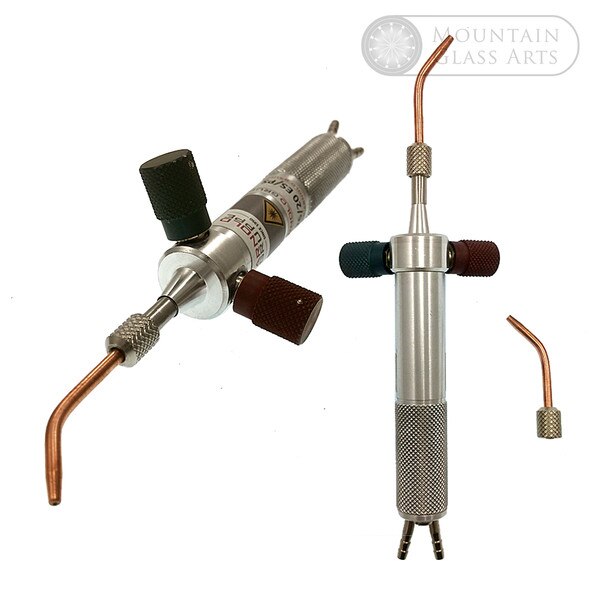

The Mini-Hand Torch is a premix for propane and oxygen. The burner is especially suitable for production and processing of the smallest glass and quartz instruments, as well as fine soldering works. The hardest to reach spots are now accessible with an unparalleled intense and focused flame.


PLEASE NOTE: Smith Little Torch tips, Hornet tips, and Blast Shield tips are not compatible with this hand torch. Hoses are not included and must be purchased separately. They are available in standard and Kevlar



Advantages:

- high concentrated, fine needle flame

- high heating capacity



Standard accessories:

- 1 pce. curved jet made of copper with stainless steel insert, 0,5 mm bore

- 1 pce. curved jet made of copper with stainless steel insert, 0,8 mm bore

Jets acc. to cat. no. 126/20.1001



Technical data:

Gas bore: 2 mm

Jet bore: 0,5 - 0,8 mm

diameter gas: 3,5 mm

Gland diameter oxygen: 3,5 mm

Gas pre-pressure: 50 mbar

Oxygen pre-pressure: 0,5 - 1,5 bar

Max. gas flow: 0,05 m³/h

Max. oxygen flow: 0,17 m³/h

Capacity: 1,3 kW
