Bravo - Bethlehem Burners
Details
Specifications

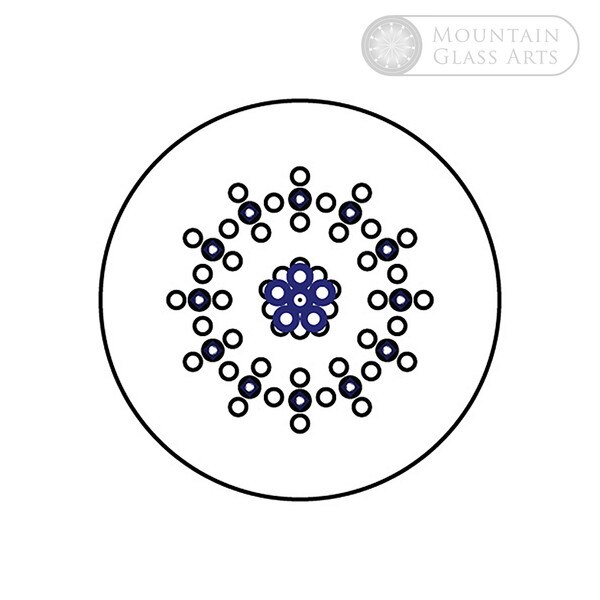

Burner configuration: Center Fire: 6 – gas jets (Alpha Design)
Outer Fire: 12 – gas jets, 36 – oxygen ports
Face Dia.: 1″
Full flame consumption:
- Propane Gas: 2 – 5 psi; 6 LPM (360 LPH, 12.71 cu ft/h)
- Tanked Oxy: 8 – 20 psi; 30 LPM (1,800 LPH, 63.57 cu ft/h); 575 BTU’s Per Minute
Works: 30mm Boro Rod; 42mm Heavy Walled Tube
Dimensions: Base 7″ x 7″
Height: 6.5″
Barrel Length: 6″
Net Weight: 5 lbs.
Overview
Made with the precision and quality of all Bethlehem Burners, the Bravo’s output is surface-mixed and whisper-soft. By varying the atmosphere of your flame, you can use your torch like a fiery paintbrush for shading and highlights. The razor-sharp center is excellent for creating small details. For marbles, sculpting, and vessels, this sleek new torch is both cost-effective and fuel-efficient.
The Bravo Glass Working Torch Features:
- An improved design replacing our popular Barracuda Burner
- All stainless steel construction that stays cool while the flame is super hot
- A unique design that allows for a higher volume of fuel at a lower inlet pressure- 15 cu. ft./hr. at only 2 psi.
- Can also operate on household gas (1/4 psi) and oxygen concentrators (7 psi)
Bethlehem Burners Bravo Torch - YouTube video
