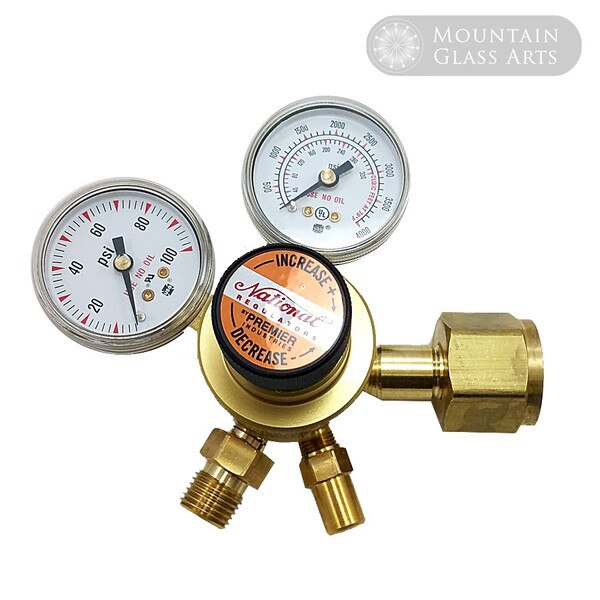

Single Stage 0-50 psi Oxygen Regulator - National

(0) No Reviews yet
SKU: E16
$84.99

Details

The high quality, single stage National oxygen regulator is perfect for torches needing less than 50 psi. Its compact size (1.63? diameter x 3? high) and solid construction makes it ideal for home studios. National is one of the leading manufacturers of torches and equipment, so you can be assured that the cartridge style valve assembly and over-pressure release valve will provide reliable performance. The casing is steel (gold painted) with brass internals, neoprene diaphragm, a Teflon® main valve seat and a 40 micron stainless steel inlet filter for reduced particle contamination.



Other Important specs:



Cv: 0.08

Body: SAE 360 Brass

Bonnet: 6061-T6 Aluminum, Gold Anodized

Inlet: CGA 540

Outlet: 9/16-18 “B” Size Hose Connection (Brass)

Gauges:

0-4000 psig inlet gauge

0-100 psig outlet gauge



How to release pressure- please read! If you stop working for more than half an hour, release the pressure of the regulator valve following these instructions:



First, close the cylinder of station valve. Then start the equipment that is connected to the regulator, releasing the gas that was retained. When not using the regulator for the day, it is recommended to disconnect it from the cylinder.



For more complete operating and safety instructions click here.
