Starter Kit #402 - Bethlehem Champion Torch
Details
Please Note: Your order may have variations in product's styles and colors from the above image.

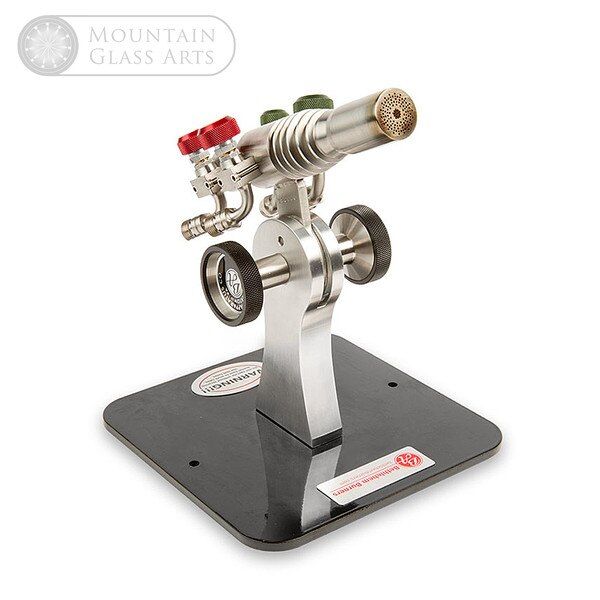

The Champion Bench Burner is a two stage, stainless steel, surface mix flame working torch with separately controlled outer and inner flames. Each stage is controlled by one gas and one oxygen valve, and the torch comes standard with a four port manifold.
The Champion was modeled after Bethlehem’s famous PM2D Bench Burner and creates flames almost identical to the legendary burner! The low-velocity flames of the Champion torch allow flame workers to produce a wide range of fuel mixtures while keeping the flames workable and gentle to the glass. These flames bathe the glass in even heat and gently heat the glass from all sides, much like working glass in a furnace. This type of flame is excellent for every style of flame working, including large hollow work, solid milli work, color-mixing and fine detail work with difficult colors. The large diameter, low-velocity flames produced by the outer fire of the Champion, make evenly heating large amounts of glass with no cold spots a breeze! Even highly oxidizing flames are soft and even!
Specifications
Burner configuration: Center Fire: 6 – gas jets (Alpha Design)
Outer Fire: 30 – gas jets, 78 – oxygen ports
Face dia.: 1.125″
Full flame consumption:
- Propane Gas: 5 psi; 8 LPM (480 LPH, 16.95 cu ft.h)
- Tanked Oxy: 20 psi; 40 LPM (2,400 LPH, 84.76 cu ft.h); 775 BTU’s Per Minute
Works: 44mm Boro Rod; 80mm+ Heavy Walled Tube
Dimensions: Base: 8″ x 8″
Height: 8.5″
Barrel Length: 7″
Net Weight: 8.75 lbs.
Overview
The Champion bench burner is a reconfigured take on Bethlehem's popular PM2D model. Create larger, more complex pieces with this new stainless steel powerhouse without losing the ability to create intricate details. Featuring a new ball-bearing scroll mechanism that provides smooth adjustments and automatically locks the torch at the desired angle, the torch is ideal for standing and sitting artists alike. Experience a full-capability torch with Bethlehem’s hottest and largest outer fire flame, while maintaining control and precision with a pinpoint center fire.
The Champion Glass Working Torch Features:
- Comes standard with a four stud manifold
- New ball-bearing scroll provides smooth adjustments and automatically locks the torch at the desired angle
- Reconfigured gas and O2 ports for most efficient fuel combustion
- Stainless steel construction keeps the torch cool to the touch, even at hottest flame.
Bethlehem Champion Torch Starter Kit includes:
- Bethlehem Burners Champion
- Oxygen Regulator
- Fuel / Gas Regulator
- Oxy/Fuel T-Grade Hose w/ B Fittings - 1/4" Inner Dia. x 12.5'
- Four Inlet to Two Inlet Hose Assembly Kit - B Fittings
- Flashback Arrestors - Set of Two, One Oxy & One Fuel Gas
- Tungsten Carbide Scoring Knife
- Wheeled Glass Nippers
- 2" x 3" Paddle x 8.5" Handle - High Quality Graphite Paddle
- Copperclad Graphite Rod - 1/4" x 12"
- Copperclad Graphite Rod - 1/2" x 12"
- 8" Tweezers - Serrated
- 10" Tweezers - Serrated
- 12" Tweezers - Serrated
- Economy Claw Grabbers w/ Set Screw
- Tool and Rod Rest - 7.5" w/ 10 Slots
- Phillips - Model 533 - BoroTruView 3.0
