Starter Kit #404 - Bethlehem STACKS Torch
Details
Please Note: Your order may have variations in product's styles and colors from the above image.

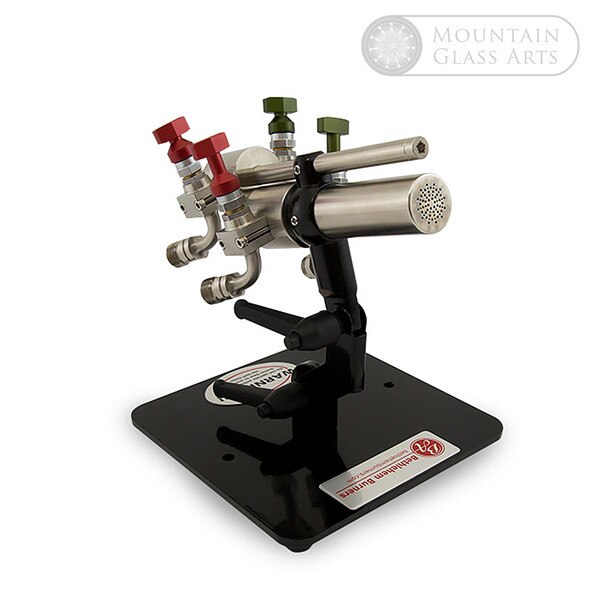

The STACKS bench burner was designed specifically to fill the gap between our Alpha burner and our Bravo burner. After taking 2 years for research and development, Bethlehem created the perfect in-between torch for both the beginner and the experienced flame worker!
Not only will The STACKS bench burner provide glass artists with a wide range of fuel mixtures, flame temperatures, and flame sizes, but it also provides them with purchasing options never before offered by Bethlehem Burners. The Top Mount and Bottom Mount can be purchased separately, thus giving flame workers the option to purchase The STACKS in stages.
Specifications
Burner configuration: STACKS 1 - (Top Mount); 6 – gas jets (Sharp Flame Design); STACKS 2 - 18 – gas jets; 48 – oxygen ports
Face Dia.: STACKS 1 - .375; STACKS 2: 1"
Full flame consumption:
STACKS 1:
- Propane Gas: 2-5 psi; 3 LPM (180 LPH, 6.36 cu ft/h)
- Tanked Oxygen: 8-20 psi; 10 LPM (600 LPH, 21.19 cu ft/h)
STACKS 2:
- Propane Gas: 2-5 psi; 3 LPM (180 LPH, 6.36 cu ft/h)
- Tanked Oxy: 8-20 psi; 10 LPM (900 LPH, 31.78 cu ft/h)
Works: 30mm Boro Rod; 38mm Heavy Walled Tube
Dimensions: Base: 6″x 6″
Height: 6.25″
Barrel Length: 7″
Net Weight: 3.68 lbs.
Overview
Bethlehem Burners' first mid-range/mid-priced bench burner, The STACKS!
The STACKS bench burner was designed specifically to fill the gap between our Alpha burner and our Bravo burner. Not only will this torch provide glass artists with a wide range of fuel mixtures, flame temperatures, and flame sizes, but it also provides them with purchasing options never before offered by Bethlehem Burners.
Each burner is constructed primarily of stainless steel and is equipped with our one-of-kind, stainless steel modular needle valves. Each burner comes with its own B-fitting gas and oxygen hose connections, making each burner a complete and separate torch unto itself. The STACKS I (top mount) and works wonderfully with oxygen concentrators. Just like the Alpha and Bravo torches, these burners excel when fueled with a low-pressure system, making them the perfect torches for concentrators.

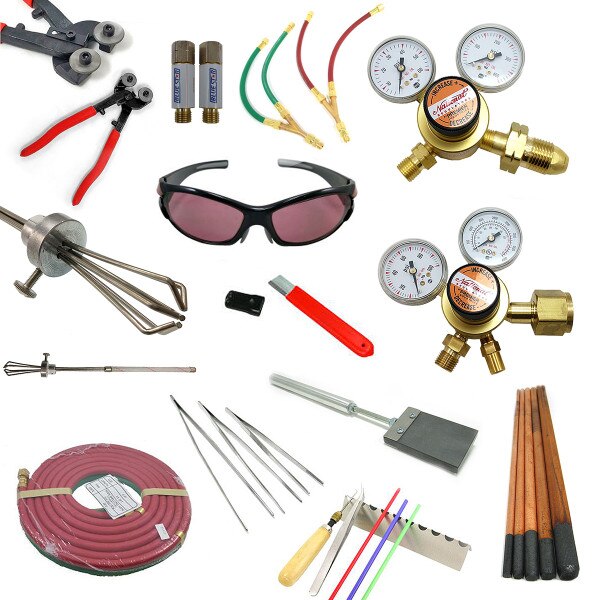

Bethlehem STACKS Torch Starter Kit includes:
- The STACKS - Bethlehem Burners
- Oxygen Regulator
- Fuel / Gas Regulator
- Oxy/Fuel T-Grade Hose w/ B Fittings - 1/4" Inner Dia. x 12.5'
- Four Inlet to Two Inlet Hose Assembly Kit - B Fittings
- Flashback Arrestors - Set of Two, One Oxy & One Fuel Gas
- Tungsten Carbide Scoring Knife
- Wheeled Glass Nippers
- 2" x 3" Paddle x 8.5" Handle - High Quality Graphite Paddle
- Copperclad Graphite Rod - 1/4" x 12"
- Copperclad Graphite Rod - 1/2" x 12"
- 8" Tweezers - Serrated
- 10" Tweezers - Serrated
- 12" Tweezers - Serrated
- Economy Claw Grabbers w/ Set Screw
- Tool and Rod Rest - 7.5" w/ 10 Slots
- WaleWear Lampworking Glasses - SB Lenses - Black w/ Orange
