Carlisle CC+ Ball & Post Mount - 4 Inlet - #5 Centerfire

(0) No Reviews yet
SKU: TCAR04
$2,139.99
Drop Ship Item - Call For Lead Time

Details

The plus series is almost twice as large as the CC, with 3 rows of burner ports vs 2 on the regular CC.



The 4 Inlet Version will require the purchase of an extra set of hoses and Y connectors if you are not using a foot pedal right away and may require additional fittings if you are. Please call if you have any questions and we will be happy to help.



The Carlisle CC+ Burner is a larger version of the CC burner. It has an added row of tubes on the outer fire resulting in a larger flame. This burner may be used with a mixture of oxygen and either natural gas or propane.



This burner produces two distinctive flames, the center fire (pre-mixed) and the outer fire (surface mixed). The center fire, which has characteristics of a single ported tip.

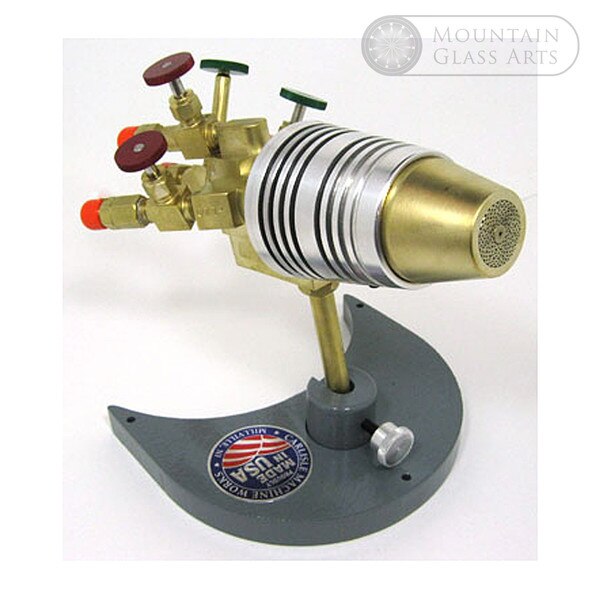

The outer shell of the CC+ is manufactured from brass (SS optional). The brass shell is threaded onto a machined brass body. For fuel gas supply, four metering valves are attached to the back of the mixer body. These valves are color coded for ease of use. The oxygen valves have green handles while the gas valves have red handles.



The CC+ is also available with four separate inlets to allow for the use of foot controllers. The standard hose connections on the CC+ are welding hose "B fittings".

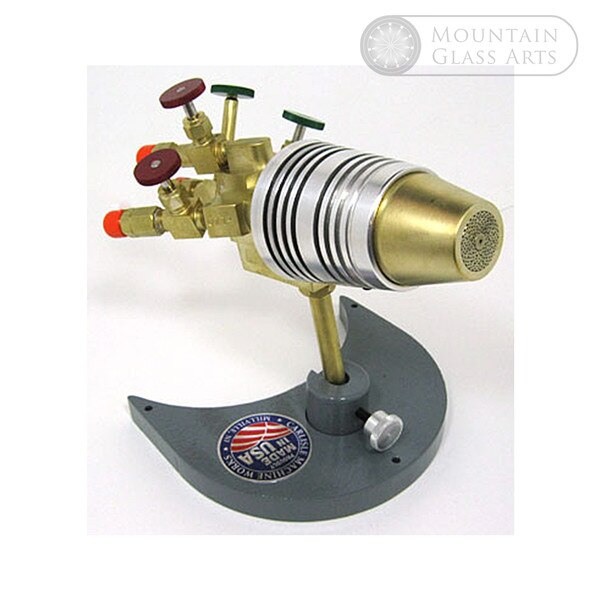

The Ball and Post base utilizes a crescent shaped solid steel base with a ball and socket connection. The post that extends upward is threaded directly into the bottom of the CC+ body. This style offers a selective articulation. In order to adjust the angle of the head, the user releases a thumb screw at the base of the post. When re-tightened, this provides positive burner positioning.
