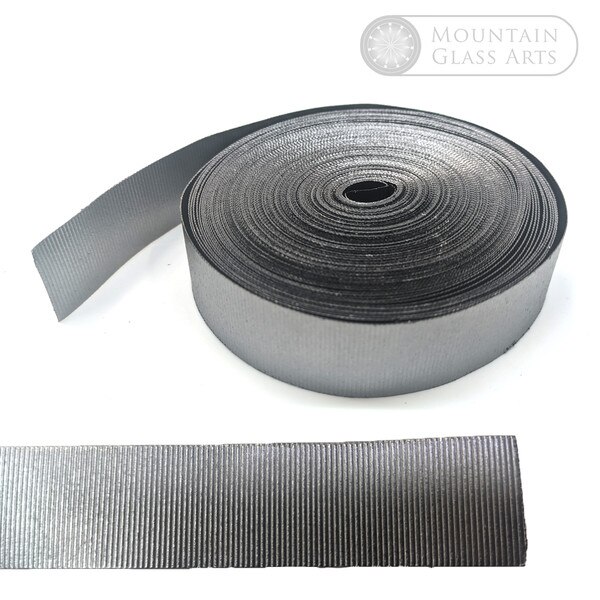

Crinkled Graphite Paper Tape - 1" W x .01" T x 50' L - By the Foot

(0) No Reviews yet
SKU: GHT087
$1.85 / Feet
FeetPrice
1 – 24$1.85
25 – 49$1.32
50 +$0.94
$25.00 - Half Roll = 25 ft.
$40.00 - Whole Roll = 50 ft.

Details

Used primarily as an insulator and spacer between two pieces of glass tapered joints. Takes high temperatures and will not stick to the glass. Ribbed for added flexibility.

Applications:

  • Thread sealant tape or form-in-place large diameter gaskets
  • Threaded joints
  • Form-in-place gaskets
  • Large diameter flanges
Typical Properties
CharacteristicTypical Value
Temperature Use Range-400° F to 975° F (-240° C to 525° C)
Bulk Density70 lb./ft3 (1.12 g/cc) 62.4 lb./ft3 (1.00 g/cc)
Ash Content1.8%
Carbon Content98.2%
Leachable Chloride10 ppm
Sulfur Content550 ppm
Oxidation Weight Loss3%
Compressibility at 5000 psi (35 MPa) load43% for 70 lb./ft3
Recovery after 5000 psi (35 MPa) load15% for 70 lb./ft3
Tensile Strength650 psi for 70 lb./ft3
