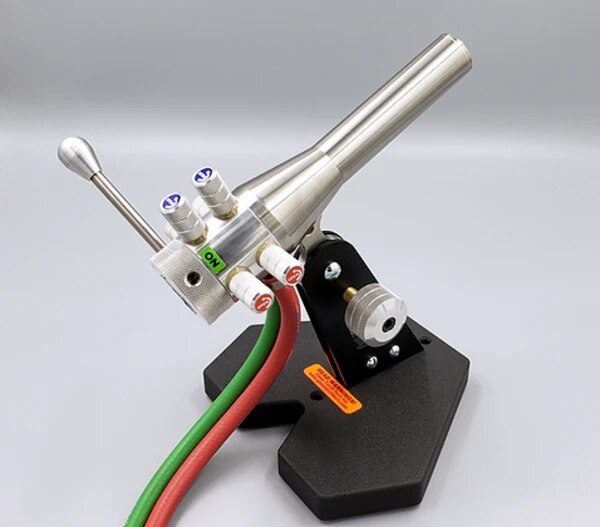

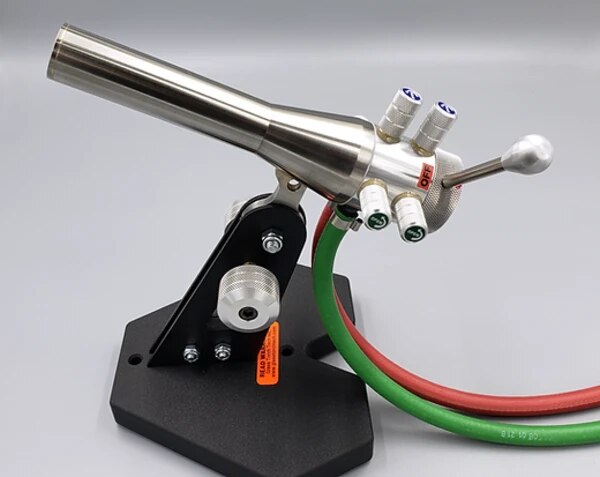

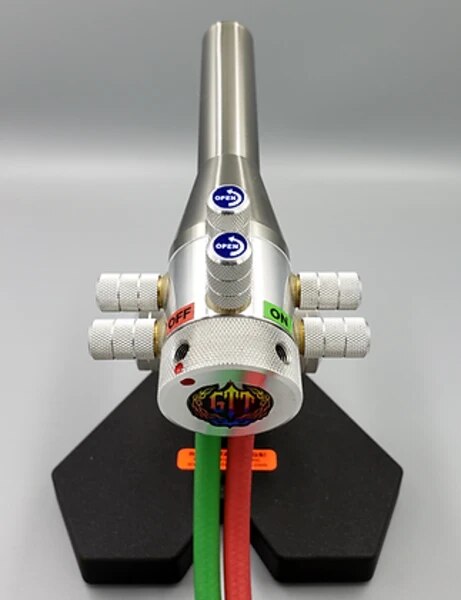

Delta Elite Torch w/ Variable On/Off Hand Switch - GTT
The new GTT Variable On / Off Hand Switch revolutionizes the concept of torch design and functionality by placing the flame control features of a foot pedal on the back of the torch.
The most impressive feature of this design is that it is variable.
This means that when you first turn the switch on you will only introduce a small amount of oxygen, similar to an oxygen bypass system on some foot pedal designs, increasing the heat of the centerfire.
As you turn the switch more fuel is introduced into the mix, creating a centerfire that is a little larger the Cheetah, and continues to transition smoothly through the full range of flame sizes until it is at the full power of the outer fire.
GTT's instructional DVD is now available to view at www.glasstorchtech.com and will no longer be included with torches.
The Delta Elite torch is a 2 stage torch that uses the powerful Lynx 7 Jet for the center fire and 3 rings of jets with a total of 50 jets for the outer fire. This completely surface mix torch uses the patented Triple Mix technology and 57 total jets to provide unparalleled power for all types of glass.
The Delta Elite is great for soft or hard glass with the ability to produce many flame types from a soft bushy flame to a hard driving flame. The flame chemistry that is achieved with the Triple Mix technology has a wide range including a fuel rich reduction flame, a neutral flame, an oxygen rich oxidizing flame, and an over-oxidizing flame. These flame types make any type, color or effect of glass easy to work and manipulate.
The Delta Elite comes standard with a 4 stud manifold that allows for the most flexibility for any setup to be run. The primary use is for a foot pedal to be used to turn the outer fire on and off with the outer fire valves preset to the desired setting. Also the 4 stud can make use of different oxygen sources such as a concentrator on the center fire and tanked oxygen on the outer fire. In this situation the fuel will be "Y"ed together at the torch for simplicity. A foot pedal is NOT required for a 4 stud torch, the hoses can be "Y"ed back together to use a single fuel source and a single oxygen source with the option to use a foot pedal in the future.
The Delta Elite comes with 1' of 3/16" hose and adaptors with filter screens to adapt to standard 1/4" ID grade "T" hose on each stud. The adaptors have a barb that the 1/4" ID grade "T" hose slides over and is clamped securely. The Delta Elite comes standard with a purple manifold, red, blue and green valve caps and rack and pinion adjustment. It is mounted on a powder coated base that has holes for securing the base to the work table. Also included are complete instructions and a cleaning kit.
