Starter Kit #504 - GTT Mirage Torch
Details
Please Note: Your order may have variations in product's styles and colors from the above image.

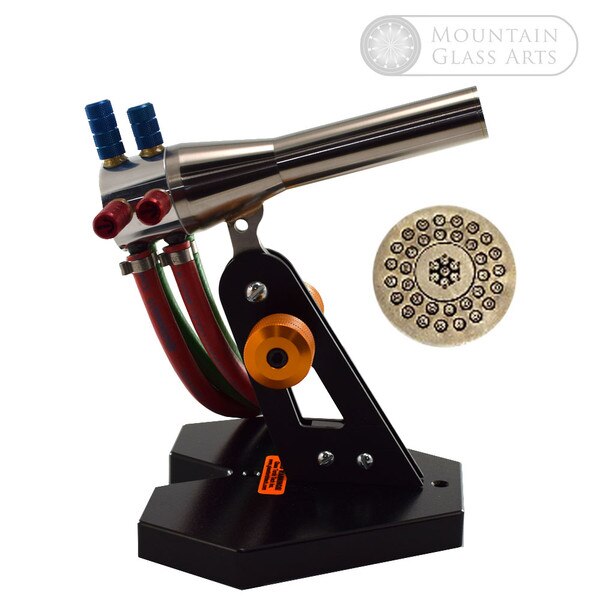

The Mirage torch is a 2 stage torch that uses the powerful Lynx 7 Jet for the center fire and 2 rings of jets with a total of 33 jets for the outer fire. This completely surface mix torch uses the patented Triple Mix technology and 40 total jets to provide unparalleled power for all types of glass.
The Mirage is the one of the most popular of the 2 stage Triple Mix torches in the lineup. It is great for soft or hard glass with the ability to produce many flame types from a soft bushy flame to a hard driving flame. The flame chemistry that is achieved with the Triple Mix technology has a wide range including a fuel rich reduction flame, a neutral flame, an oxygen rich oxidizing flame, and an over-oxidizing flame. These flame types make any type, color or effect of glass easy to work and manipulate.
The Mirage comes standard with a 4 stud manifold that allows for the most flexibility for any setup to be run. The primary use is for a foot pedal to be used to turn the outer fire on and off with the outer fire valves preset to the desired setting. Also the 4 stud can make use of different oxygen sources such as a concentrator on the center fire and tanked oxygen on the outer fire. In this situation the fuel will "Y" together at the torch for simplicity. A foot pedal is NOT required for a 4 stud torch, the hoses can "Y" back together to use a single fuel source and a single oxygen source with the option to use a foot pedal in the future.
The Mirage comes with 1' of 3/16" hose and adaptors with filter screens to adapt to standard 1/4" ID grade "T" hose on each stud. The adaptors have a barb that the 1/4" ID grade "T" hose slides over and is clamped securely. The Mirage comes standard with a purple manifold, red, blue and green valve caps and rack and pinion adjustment. It is mounted on a powder coated base that has holes for securing the base to the work table. Also included are complete instructions and a cleaning kit.

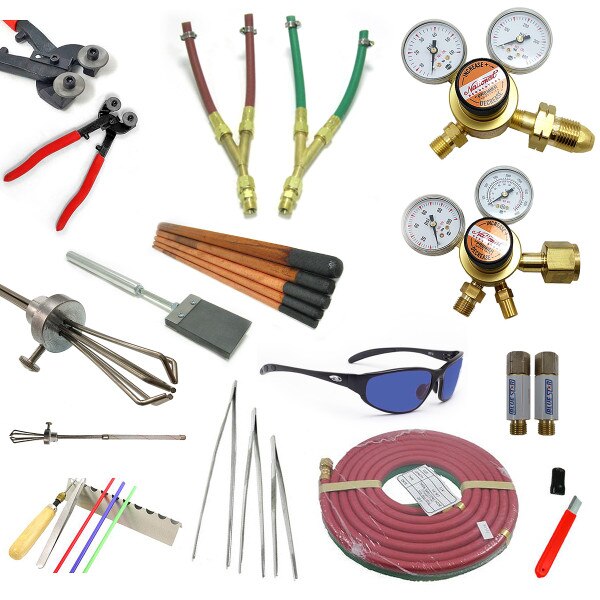

GTT Mirage Torch Starter Kit includes:
- GTT Mirage Torch
- Oxygen Regulator
- Fuel / Gas Regulator
- Oxy/Fuel T-Grade Hose w/ B Fittings on One End - 1/4" Inner Dia. x 12.5'
- Four Inlet to Two Inlet Hose Assembly Kit - Barbed Fittings
- Flashback Arrestors - Set of Two, One Oxy & One Fuel Gas
- Tungsten Carbide Scoring Knife
- Wheeled Glass Nippers
- 2" x 3" Paddle x 8.5" Handle - High Quality Graphite Paddle
- Copperclad Graphite Rod - 1/4" x 12"
- Copperclad Graphite Rod - 1/2" x 12"
- 8" Tweezers - Serrated
- 10" Tweezers - Serrated
- 12" Tweezers - Serrated
- Economy Claw Grabbers w/ Set Screw
- Tool and Rod Rest - 7.5" w/ 10 Slots
- WaleWear Lampworking Glasses - SB Lenses - Black w/ Orange
