Starter Kit #512 - GTT Snub Nose Phantom Torch

(0) No Reviews yet
SKU: GTT Snub Nose Phantom Torch - Starter Kit #512
$2,003.24
**Starter Kit Discount**
$2,033.67 / Total Retail Value
$30.43 in Total Savings!

Details

Please Note: Your order may have variations in product's styles and colors from the above image.

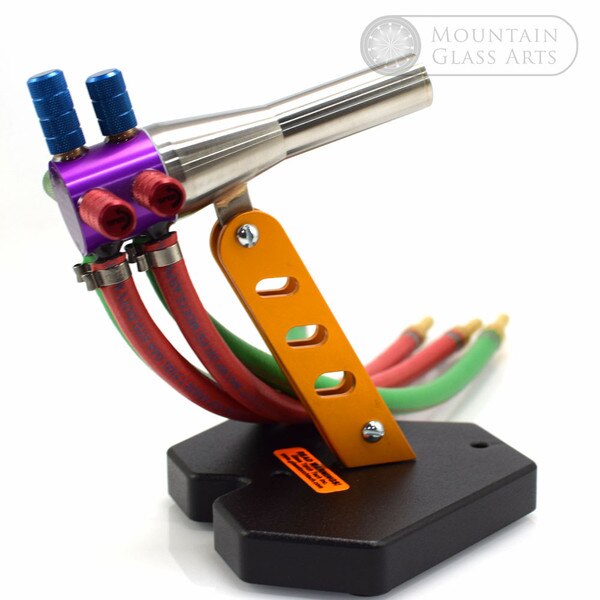

The Phantom torch is a 2 stage torch that uses the powerful Lynx 7 Jet for the center fire with a ring of 15 jets for the outer fire. This completely surface mix torch uses the patented Triple Mix technology to provide unparalleled flame chemistry for all types of glass.

The Phantom is the first of the 2 stage Triple Mix torches in the lineup. It is great for soft or hard glass with the ability to produce many flame types from a soft bushy flame to a hard driving flame. The flame chemistry that is achieved with the Triple Mix technology has a wide range including a fuel rich reduction flame, a neutral flame, an oxygen rich oxidizing flame, and an over-oxidizing flame. These flame types make any type, color or effect of glass easy to work and manipulate.

The Phantom is available in a 2 stud or 4 stud version to optimize any setup. The 2 stud is used when the fuel and oxygen come from a single source, and when there is no desire to use a foot pedal now or in the future. The 4 stud allows for the most flexibility for any setup to be run. The primary use is for a foot pedal to be used to turn the outer fire on and off with the outer fire valves preset to the desired setting. Also the 4 stud can make use of different oxygen sources such as a concentrator on the center fire and tanked oxygen on the outer fire. In this situation the fuel will "Y" together at the torch for simplicity. The 2 stud and 4 stud Phantom both work identically in function, the only change is the way the fuel and oxygen are supplied to the torch. A foot pedal is NOT required for a 4 stud torch, the hoses can "Y" back together to use a single fuel source and a single oxygen source with the option to use a foot pedal in the future.

The Phantom 2 stud and 4 stud come with 1' of 3/16" hose and adaptors with filter screens to adapt to standard 1/4" ID grade "T" hose on each stud. The adaptors have a barb that the 1/4" ID grade "T" hose slides over and is clamped securely. The Phantom comes standard with a purple manifold, red, blue and green valve caps and gold arms. It is mounted on a powder coated base that has holes for securing the base to the work table. Also included are complete instructions and a cleaning kit.

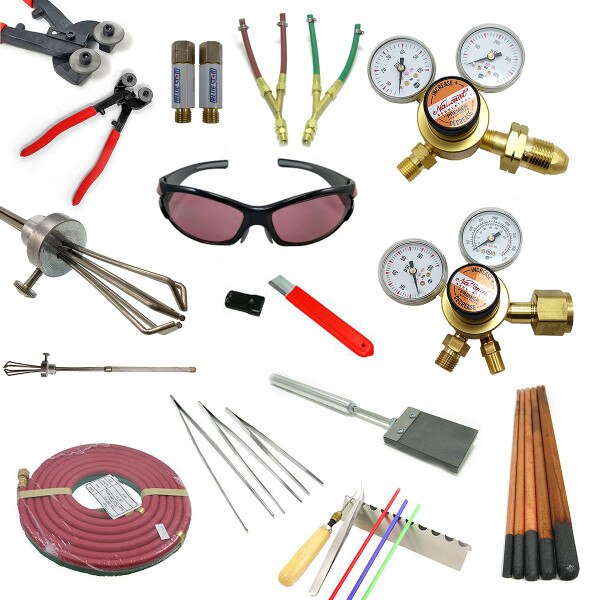

GTT Snub Nose Phantom Torch Kit includes:
- GTT Snub Nose Phantom Torch
- Oxygen Regulator
- Fuel / Gas Regulator
- Oxy/Fuel T-Grade Hose w/ B Fittings - 1/4" Inner Dia. x 12.5'
- Four Inlet to Two Inlet Hose Assembly Kit - Barbed Fittings
- Flashback Arrestors - Set of Two, One Oxy & One Fuel Gas
- Tungsten Carbide Scoring Knife
- Wheeled Glass Nippers
- 2" x 3" Paddle x 8.5" Handle - High Quality Graphite Paddle
- Copperclad Graphite Rod - 1/4" x 12"
- Copperclad Graphite Rod - 1/2" x 12"
- 8" Tweezers - Serrated
- 10" Tweezers - Serrated
- 12" Tweezers - Serrated
- Economy Claw Grabbers w/ Set Screw
- Tool and Rod Rest - 7.5" w/ 10 Slots
- WaleWear Lampworking Glasses - SB Lenses - Black w/ Orange
