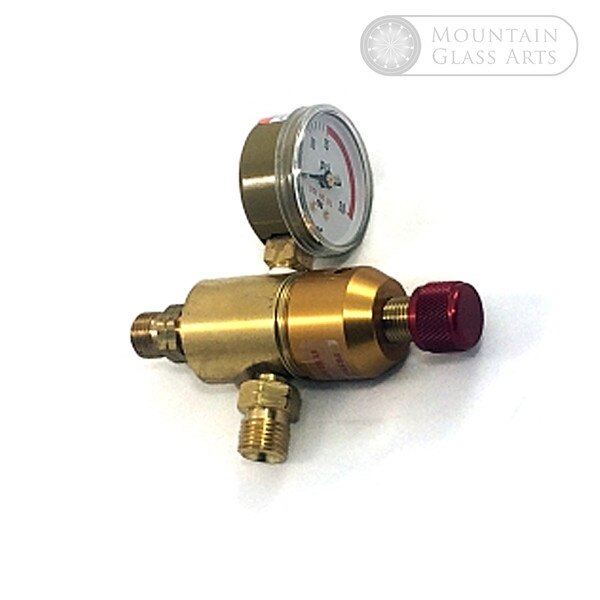

Inline Fuel/Gas Regulator

1 Review
SKU: EQ99
$59.95
DOES NOT CONNECT TO TANK

Details

Perfect For Reducing Pressure For Smaller Torches On Multi Torch Systems With High Output Pressure At The Tank. FEATURES: Compact Size (1.23? Diameter X 3.25? High) Machined Bar Stock Body Eliminates Porosity Found In Castings Very Competitive Pricing SPECIFICATIONS: Maximum Inlet Pressure: 400 PSIG Outlet Control Pressure: 0-30 PSIG Cv: 0.08 MATERIALS OF CONSTRUCTION: Body: SAE 360 Brass Bonnet: 6061-T6 Aluminum / Gold Anodize Diaphragm: Neoprene Main Valve Seat: Neoprene Inlet: 1/4 FNPT Outlet: “B” Size Hose Connection (Brass) Gauges: Brass Internals

Ratings & Reviews

1 review

  • 4 stars
  • 0 reviews
  • 3 stars
  • 0 reviews
  • 2 stars
  • 0 reviews
  • 1 star
  • 0 reviews

Great for hard lines! nice clean look too.

by

I haven't had them long, but very happy with them, they came with Left hand B fittings on both sides, but easily remove the input adapter and it has 1/4" FNPT for an input. was easily able to adapt to hard lines with the right fittings/bushings.
