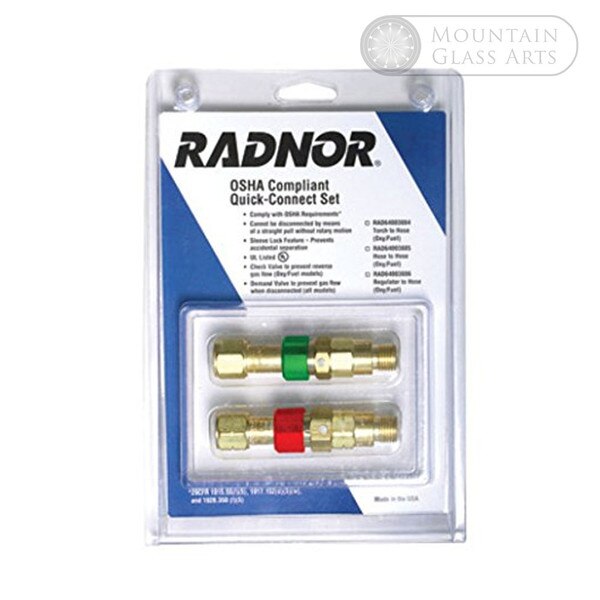

Quick Connect - OSHA Compliant Hose to Hose Oxygen/Fuel Gas Set w/ Check Valves

(0) No Reviews yet
SKU: OSHA-QDB50
$85.00

Details

Western's Quick Connects provide fast, reliable and positive connections and quick disconnections for torches, hoses and regulators. All models are color-coded for gas service for added safety (oxygen/green, fuel gas/red, inert gas/blue). Oxy/fuel gas models include integral reverse flow Check Valves. Quick Connects fit all B-size welding and cutting equipment.

Features:
- Brass construction provides long service life-cycle tested over 10,000 operations indicating a service life of 10 to 12 years of comparable use
- Non-interchangeable Oxygen and Fuel Gas connectors prevent accidental gas mixing
- Instant closure on reverse flow Check Valves with total shutoff at only 10 oz.of back pressure
- Exceed CGA flow specifications:1100 SCFH flow at 125 PSIG inlet pressure and 800 SCFH flow at 125 PSIG inlet pressure when 2 additional check valves are used in conjunction with the Quick Connects
- Spring loaded locking mechanism responds to fingertip action and achieves a gas-tight connection
- UL Listed
-For inert gas models, demand valve on supply side creates a positive seal when fitting is not connected
- Double seal socket connection on second seal provides added safety protection
- Installation and operating instructions included
- 200 psig maximum operating pressure

Gas Type: Oxygen/Fuel Gas
Height: 7 in
Type: Torch-to Hose
Length: 3-1/2 in, 3 in [Min], 4 in [Max]
Thread Size: 9/16 in - 18
