  • Paragon F120 Front Loading Digital Kiln - Width: 10.75" - Height: 7.0" - Depth: 11.0"

Paragon F120 Front Loading Digital Kiln - Width: 10.75" - Height: 7.0" - Depth: 11.0"

4 Reviews
SKU: PKF120 DIGI
$1,340.00
$1674.90 Retail

$334.9 Savings

Details

**ON SALE $1,340 - RETAIL $1,675**

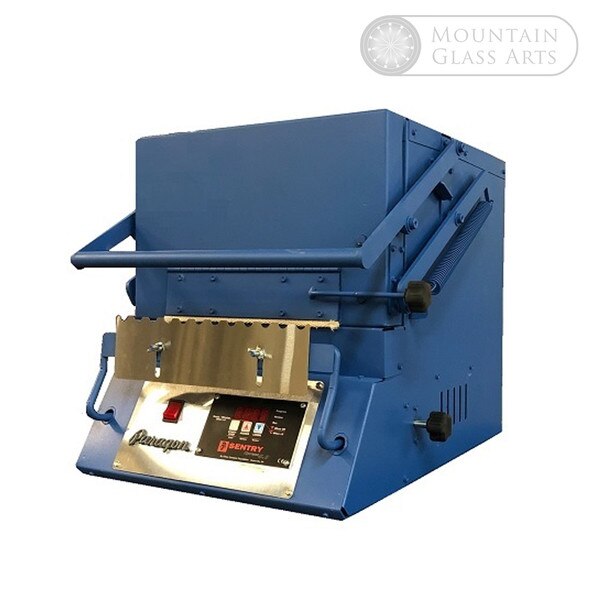

Paragon F-120 Digital Lamp Working Kiln



Anneal large glass pieces in the digital F-120 lamp working kiln. Raise the spring-loaded vertical-drop door to insert your piece with a punty rod. Lower the door. The punty rod extends outside the firing chamber, allowing the glass to anneal safely. This allows the glass to anneal safely.

You can make pieces up to 5” tall in the F-120. Maintain the annealing temperature with the Sentry Xpress 3-key controller.

The Sentry Xpress 3-key controller is packed with features. It includes two modes: Single Speed and 8-segment Ramp-Hold.



Features of the Sentry Xpress 3-key Controller on Non-Ceramic Paragon Kilns

  • Design programs with up to 8 segments (steps) in Ramp-Hold mode.
  • Fire to a single temperature at a single speed in the simplified Single Speed mode.
  • Ramp-Hold mode can store 4 programs.
  • Skip a segment in Ramp-Hold during firing without having to stop the kiln to reprogram.
  • Change the target temperature in Ramp-Hold during firing without having to stop the kiln to reprogram.
  • Hold (soak) the temperature in both Single Speed and Ramp-Hold. Experiment with Hold to improve color saturation of china paints.
  • Add Hold Time during firing without having to stop the kiln to reprogram.
  • Control both heating and cooling in Ramp-Hold.
  • Program Review lets you check the program you are about to fire.
  • Program the Temperature Alarm to sound when the kiln reaches a specific temperature. Use this to remind yourself to check on the kiln.
  • Temperature display throughout firing and cooling in your choice of °F or °C
  • Thermocouple Offset adjusts the thermocouple readout.
  • Set the Delay to turn on the kiln later to suit your schedule.
  • Error Messages report mechanical problems such as a disconnected thermocouple, stuck relay or broken element.
  • 12 Month Warranty
  • LED Lights show whether you are in program, review, or firing mode.
  • Colorful, illustrated instruction manual. Download it from the “Additional Information” section below to review these features in more detail.
Ease of operation will delight you. Never before has lamp work been so easy in this price range. Imagine the massive, award-winning figurines you will be able to make with this kiln.

The F-series lid elements use a new element groove that eliminates element pins. The element coils are wider than the groove opening, so the elements stay in place without pins. The element is mounted in the top of the kiln for safety. There is no sidewall element to touch with a punty rod. With the element in the top, you can also fuse and slump glass.

Imagine the glass you could sag, slump, and fuse with this kiln. Make small bowls, pendants, earrings, cufflinks, and even bracelets. Enjoy the glittering beauty of dichroics. This kiln will give you a haven of creative enjoyment that you will enjoy for many years.

  • Digital Sentry Xpress with 8 Segment Ramp-Hold, Skip Segment & Program Review
  • On/off switch
  • Safety pilot light
  • The element groove in the roof eliminates pins.
  • 2 ½” insulating refractory firebricks in the roof, walls, and bottom
  • The element is seated in the top of the kiln.
  • Electrical components stay cool in a slotted base. No extra stand is needed.

Specifications

Max. Temperature

1700F

926C

Amps

14

Phase

1

Watts

1680

Nema

5-15P

Breaker Size

20

Circuit Copper Wire Size

12 gauge

TUV tested to CSA and UL Standard 499

Y

CE

N

IMPORTANT: Some areas such as Canada and Europe require a lid or door safety switch on kilns.





Control Type



Sentry Xpress 4.0 Digital 3- Key

Voltage

120

Hertz

60



Kiln Type

Front Loading Square

Sides

4

Understanding Chamber Measurements



Chamber Volume

0.48 CU.FT.

13.59 litres

Chamber Width

10.75 IN

273 mm

Chamber Depth

11.00 IN

279 mm

Chamber Height

7.00 IN

178 mm



The Outer Size of the Kiln and the Shipping Size: Width = Left to Right; Depth = Front to Back; Height = Top to Bottom



Outer Size

20.50W x 23.00D x 20.00H Inches

521W x 584D x 508H mm

Ship Size

28.50W x 28.50D x 27.00H Inches

724W x 724D x 686H mm

Ship Weight

125.00 Lbs.

56.70 Kg.

Ship Method & Notations

This Kiln Ships Via Truck
