  • Paragon SC3 Digital Kiln with Bead Door and Window - Width: 7.75" - Height: 7.75" -Depth:8

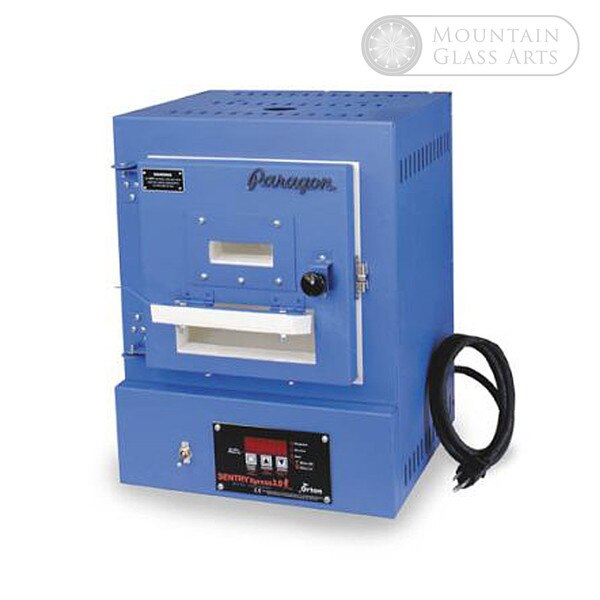

Paragon SC3 Digital Kiln with Bead Door and Window - Width: 7.75" - Height: 7.75" -Depth:8

(0) No Reviews yet
SKU: PKSC3BD w/WINDOW DIGI
$964.00
Drop Ship Item - Call For Lead Time

$1071.61 Retail

$106.61 Savings

Details

The digital SC-3 kiln fires silver clay, decals, china paint, enameling, and glass in minutes up to 2000°F. The SC-3 is popular with seminar teachers because it fires so fast, plugs into a 120 volt outlet, and is easy to sell.



The SC-3 has been in production since 1998. It is a proven design that we have steadily refined every year. Artists in the U.S., Canada, Europe, and Japan love their SC-3.

The SC-3, for a digital kiln, is surprisingly affordable. It fires automatically at the rate and temperature you enter. A large, brightly lit display prompts for firing rate, temperature and hold time. Use the hold feature to automatically soak any type of clay silver to its recommended time.



The ceramic fiber firing chamber is wrapped in a steel inner case. The outer steel case remains cool due to the layer of air between it and the inner case. In addition, the case is slotted for air circulation. Electrical components, located in the base, stay cool even at extended hold times.



The 6 1/2” wide bead door includes a brushed stainless steel mandrel holder. The 1” x 3” window is beveled for a wide view of the kiln interior. Watch your project turn bright red through the window, which is guaranteed up to 1700°F. (Note: Always wear firing safety glasses when viewing the kiln interior.)



The fast firing element is embedded in the firing chamber shell. The SC-3 heats from the two sides and back. It includes a top vent for lost wax casting.



Each SC-3 includes a 1/4” thick ceramic fiber shelf.



SC-3 Features

  • On/off safety switch
  • Built-in base; no extra stand needed
  • Door opens 180 degrees for easy loading
  • The case is slotted for air circulation
  • Electrical components in the base stay cool even at extended hold times
  • The embedded element heats from the two sides and back
  • Top vent complete with tapered plug for lost wax casting
  • Includes a 1/4” thick ceramic fiber shelf
  • Optional glass view port
  • Optional 6 1/2” wide bead door with mandrel holder
The Sentry Xpress 3-key controller is packed with features. It includes two modes: Single Segment and 8-segment Ramp-Hold.



Features of the Sentry Xpress 3-key Controller on the SC-3



  • Design programs with up to 8 segments (steps) in Ramp-Hold mode.
  • Fire to a single temperature at a single speed in the simplified Single Segment mode.
  • Ramp-Hold mode can store 4 programs.
  • Skip Segment feature in Ramp-Hold mode
  • Temperature hold
  • The Sentry Xpress can control both heating and cooling.
  • Program Review lets you check that the program you are about to fire is correct.
  • Temperature Display throughout firing and cooling in your choice of °F or °C
  • Error Messages report mechanical problems such as a disconnected thermocouple, stuck relay or broken element.
  • 12 Month Warranty
  • LED Lights show whether you are in program, review, or firing mode.




  • The SC-3 can now ship by UPS. Enjoy lower shipping cost and faster service. Specially designed cartons and foam padding assure that the kiln will arrive safely.



    Specifications





    Max. Temperature2000F

    1093C
    Amps15
    Phase1
    Watts1800
    Nema5-15R
    Breaker Size20
    Circuit Copper Wire Size12 gauge
    TUV tested to CSA and UL Standard 499Y
    CEY
    Control Type

    Sentry Xpress 4.0 Digital 3-Key
    Voltage120
    Hertz60
    Nema Details












    Disclaimer: The specifications above assume that the kiln will be plugged into a dedicated circuit. Local electric codes supersede our recommendations.The pricing and electrical specifications for the above products reflect their design for use in the United States. The International versions of most models will have variations in electrical specifications and price due to consumer safety requirements or electrical regulations.
    Kiln TypeFront Loading Square
    Sides4
    Understanding Chamber Measurements
    Chamber Volume0.28 CU.FT.

    7.93 litres
    Chamber Width7.75 IN

    197 mm
    Chamber Depth8.00 IN

    203 mm
    Chamber Height7.75 IN

    197 mm


    The Outer Size of the Kiln and the Shipping Size: Width = Left to Right; Depth = Front to Back; Height = Top to Bottom

    Outer Size13.30W x 14.00D x 17.00H Inches

    338W x 356D x 432H mm
    Ship Size22.00W x 17.00D x 19.00H Inches

    559W x 432D x 483H mm
    Ship Weight40.00 Lbs.

    18.14 Kg.
    Ship Method & NotationsThis Kiln Ships Via UPS
