  • Paragon BlueBird XL Digital Kiln 120 volt PINK

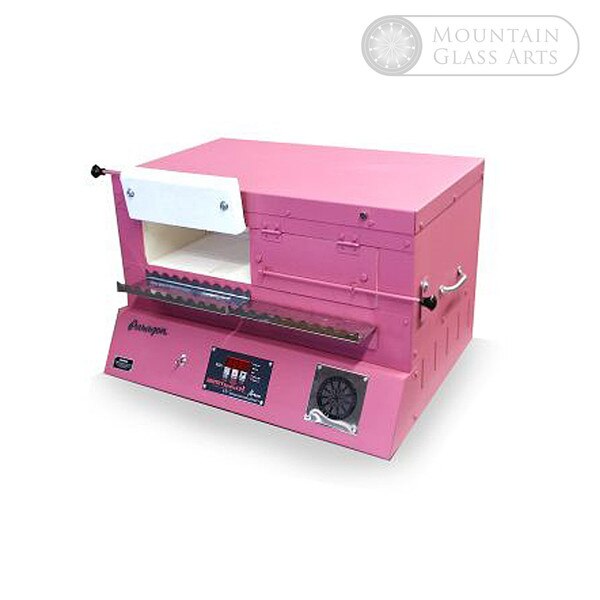

Paragon BlueBird XL Digital Kiln 120 volt PINK

1 Review
SKU: PKBLUEBIRDXL DIGI PINK
$1,158.28
$1,323.75 Retail
$165.47 Savings

Details

If you love pink, then you'll love this kiln! The Bluebird XL in pink instead of the standard Paragon blue, is now a stock item for MGA and available for same day shipping!
The Paragon BlueBird XL is a dream kiln for the glass bead enthusiast. This 20” wide, 9” deep kiln safely anneals glass to prevent breakage during cooling. With your own Paragon annealing kiln, you will never again worry about glass breakage.
The kiln opens doorways of opportunity in beadmaking. The 10” wide double doors give a total of 20” width for inserting bead rods. This kiln is ideal for seminar teachers. It is like having two kilns instead of one.
The BlueBird XL has a user-friendly 3-key Sentry Xpress digital controller. It maintains the annealing temperature that you program for the length of time desired. The controller is packed with features but is so easy to use that your child could program it.

Firebrick Walls and Floor, Ceramic Fiber Roof

The BlueBird XL has durable insulating firebricks in the walls and floor. The element is mounted in the roof and embedded between two layers of ceramic fiber board. This reduces dust inside the kiln.
(Note: The BlueBird XL is fired at the Paragon factory before the outside metal is painted. This is to harden the liquid rigidizer on the ceramic fiber insulation. This may leave black or brown marks on the insulation. These marks are normal.)

Door Latches Keep Doors Closed; Magnets Hold Doors Open

Side latches hold the doors closed while the kiln is heating to annealing temperature. Phenolic knobs on the door handles stay cool to the touch. Rare-earth magnets hold the doors open when needed. A safety switch on the front panel turns off power to the controller when the kiln is not in use.
We have added a stainless steel glass rod warmer on top of the kiln. Pre-heating glass rods saves production time.

Heavy-Duty Construction

The steel base supports the kiln in two layers. The upper steel base supports and strengthens the firebrick floor; the lower steel base covers the entire kiln bottom where it rests on your worktable. Electrical components are mounted to the lower base, away from the heat of the firing chamber.
To save table space, the Sentry Xpress digital controller is mounted under the kiln in an ergonomic sloped panel for easy operation. The built-in base stays cool even during extended hold times for the long life of the electrical system. It is slotted to dissipate heat and comes with mar-proof plastic feet.
The Blue Bird XL plugs into a standard household outlet. The kiln ships by convenient UPS. It ships in a special carton with vacuum-formed padding to assure that the kiln will arrive safely.
And, of course, the BlueBird XL is made in America to exacting standards. The kiln is coated with durable high-temperature water base paint, which produces low emissions during spraying. This is better for our employees and the environment.

Features of the BlueBird XL
  • 3-key digital Sentry Xpress controller
  • 1 each 4” high short door and 4 1/4” high tall door for the ultimate in versatility
  • Door latches to hold the doors closed while fusing glass
  • 9” deep firing chamber (measured with doors closed)
  • Firebrick roof, walls, and floor
  • 1”-thick ceramic fiber doors
  • Mandrel holders with 20 slots
  • 1500°F maximum temperature
  • Pinless element grooves in the roof
  • Coated firebricks in roof
  • Mar-proof plastic feet
  • On-off safety switch
The Sentry Xpress 3-key controller is packed with features. It includes two modes: Single Speed and 8-segment Ramp-Hold. The solid state controller continually monitors the firing so you can spend your time productively without closely watching the kiln. The sealed controller touch pad keeps out dust and is easy to wipe clean.
The controller is easy to use. Read the manual and watch the instructional videos on our website. The kiln includes a Quick Start programming guide and a 16-page controller instruction manual, printed in color.
You will be amazed at the convenience of digital firing. The reliable solid-state Sentry Xpress controller continually monitors the firing so you do not need to closely watch the kiln. (Please remember, however, to check the kiln occasionally during firing and to monitor it near the expected shutoff time.) You can try out a demonstration of the controller on your computer by clicking here.

Features of the Sentry Xpress 3-key Controller on Paragon Fusion Kilns
  • Program up to 8 segments (steps) in Ramp-Hold mode.
  • Fire to a single temperature at a single speed in Single Speed mode.
  • Store up to 4 programs in Ramp-Hold mode.
  • Skip a segment in Ramp-Hold without having to stop the kiln to reprogram. (For instance, you want to skip to the annealing segment.)
  • Change the target temperature in Ramp-Hold during firing without stopping the kiln to reprogram.
  • Hold (soak) the temperature in both Single Speed and Ramp-Hold.
  • Add Hold Time during firing without having to stop the firing to reprogram.
  • Easily control both heating and cooling in Ramp-Hold.
  • Program Review lets you check the program you are about to fire.
  • Program the Temperature Alarm to sound when the kiln reaches a specific temperature. Program an alarm that will remind you to check on the kiln.
  • Temperature display throughout firing and cooling in your choice of °F or °C
  • Thermocouple Offset adjusts the thermocouple readout.
  • Set the Delay to turn on the kiln at a time that best suits your busy schedule.
  • Error Messages report mechanical problems.
  • The sealed touch pad keeps out dust and is easy to wipe clean.
  • LED Lights show whether you are in program, review, or firing mode.
  • Colorful, illustrated instruction manual. Download it from the “Additional Information” section below to review all the controller features in more detail.
  • Specifications

    Max. Temperature1500F
    815C
    Amps14
    Phase1
    Watts1700
    Nema5-15R
    Breaker Size20
    Circuit Copper Wire Size12 gauge
    TUV tested to CSA and UL Standard 499Y
    CEY
    Control Type
    Sentry Xpress 4.0 Digital 3-Key
    Voltage120
    Hertz60








    Disclaimer: The specifications above assume that the kiln will be plugged into a dedicated circuit. Local electric codes supersede our recommendations.The pricing and electrical specifications for the above products reflect their design for use in the United States. The International versions of most models will have variations in electrical specifications and price due to consumer safety requirements or electrical regulations.
    Kiln TypeFront Loading Square
    Sides4
    Understanding Chamber Measurements
    Chamber Volume0.47 CU.FT.
    13.31 litres
    Chamber Width20.00 IN
    508 mm
    Chamber Depth9.00 IN
    229 mm
    Chamber Height4.50 IN
    114 mm

    The Outer Size of the Kiln and the Shipping Size: Width = Left to Right; Depth = Front to Back; Height = Top to Bottom
    Outer Size25.50W x 19.00D x 16.00H Inches
    648W x 483D x 406H mm
    Ship Size32.00W x 24.00D x 23.00H Inches
    813W x 610D x 584H mm
    Ship Weight86.00 Lbs.
    39.01 Kg.
    Ship Method & NotationsThis Kiln Ships Via UPSThis kiln is subject to a UPS oversize box charge.


Ratings & Reviews

1 review

  • 4 stars
  • 0 reviews
  • 3 stars
  • 0 reviews
  • 2 stars
  • 0 reviews
  • 1 star
  • 0 reviews

Pink is great

by

Have been using for almost 9 months and cannot find anything that I cannot do. I can use to fuse glass. I can also use to do copper enameling. But the most use is for bead making. It will allow me to program these functions and all I have to do is select the function I want. Works great.
